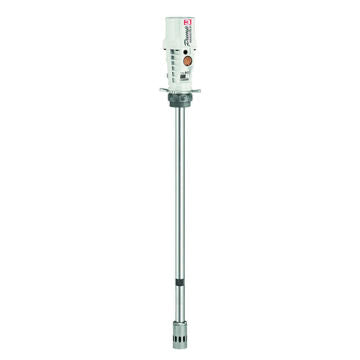

SAMSON 300 Pumpmaster 3 55:1 High Pressure Grease Pump

Product Description

Samson PumpMaster 3 Series grease pump for a 35 pound (5 gallon) pail. Designed for mobile and portable greasing units.

• Pump Pressure Ratio: 55:1
• Continuous Duty Flow Rate: 0.7 lb/min (300 g/min)
• Maximum Free Flow Rate: 1.2 lb/min (540 g/min)
• Air Pressure Operating Range: 20-140 psi (1.5-10 bar)
• Maximum Outlet Pressure: 7,700 psi (550 bar)
• Air Motor Effective Diameter: 2 3/4" (70 mm)
• Air Motor Stroke: 1 1/2" (33 mm)
• Air Consumption: 5.8 scfm (165 NL/min)
• Air Inlet: 1/4" NPTF
• Fluid Outlet: 1/4" NPTF
• Wetted Materials: Aluminium, Steel, NBR, PTFE
• Noise Level: 85 dB Application: 35 lb pail
• Simultaneous Dispense Points: 1 - No Reels
• Max.Line Length: 50' (15 m)
• Pump Description: Utility High Pressure
