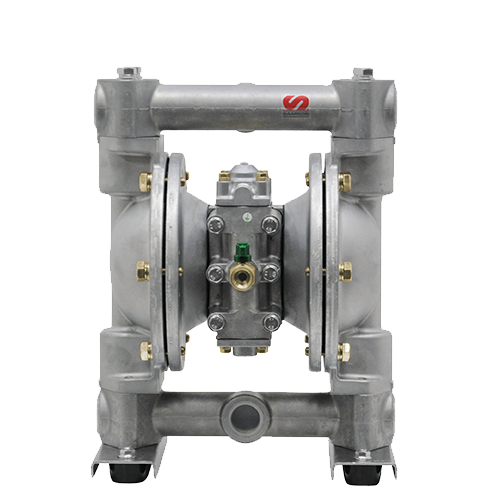

SAMSON 2836 UL Rated Diaphragm Pump 40gal/min

Conventional air operated diaphragm pumps pump the fluid around the outside of the pump and compressed air acts on the inside face of the diaphragms.

Fluids Handled

• Oils
• Antifreeze
• Hydraulic Fluids
• Diesel
• Water
• Waste Oil & Antifreeze

Pump Pressure Ratio

1:1

Maximum Free Flow Rate

28 gal/min (106 l/min)

Maximum Suction Lift

18'

Minimum Air Pressure

20 psi (1.5 bar)

Maximum Air Pressure

100 psi (7 bar)

Max Size Solid Suspension

1/16"

Air Inlet

3/8" NPTF

Fluid Outlet

1" NPTF

Fluid Inlet

1" NPTF

Wetted Materials

Aluminum, NBR
