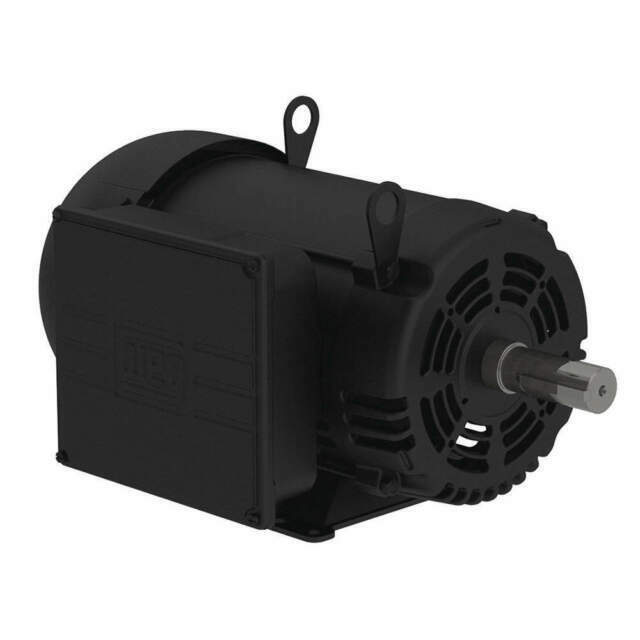

WEG 00718OS1CCD215T 7.5HP SINGLE phase Electric Motor 208/230V 1760RPM, 215T Frame

Air Compressor Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 33.8-32.2 A, 213/5T Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Mounting Position Horizontal, Motor Frame Material Steel, Shaft Dia. 1 3/8 in, Shaft Length 3 3/8 in, Motor Shaft Design Keyed, Motor Bearings Ball
